● Comply with IEEE802.11ax/ac/a/n, IEEE 802.11ax/b/g/n 2.4GHz, IEEE802.3, IEEE802.3u standard protocol;

● Dual-band wireless concurrent rate of 2976Mbps;

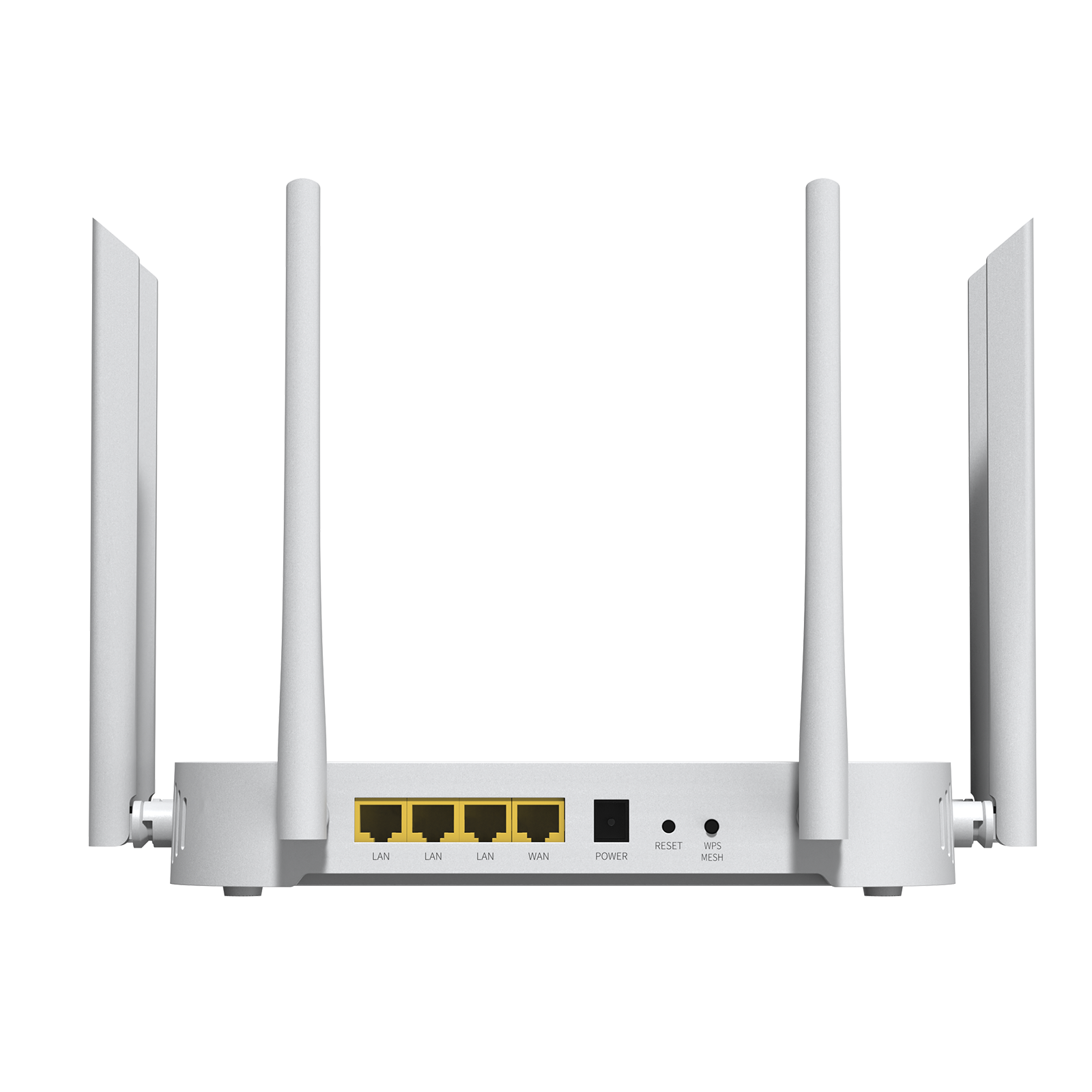

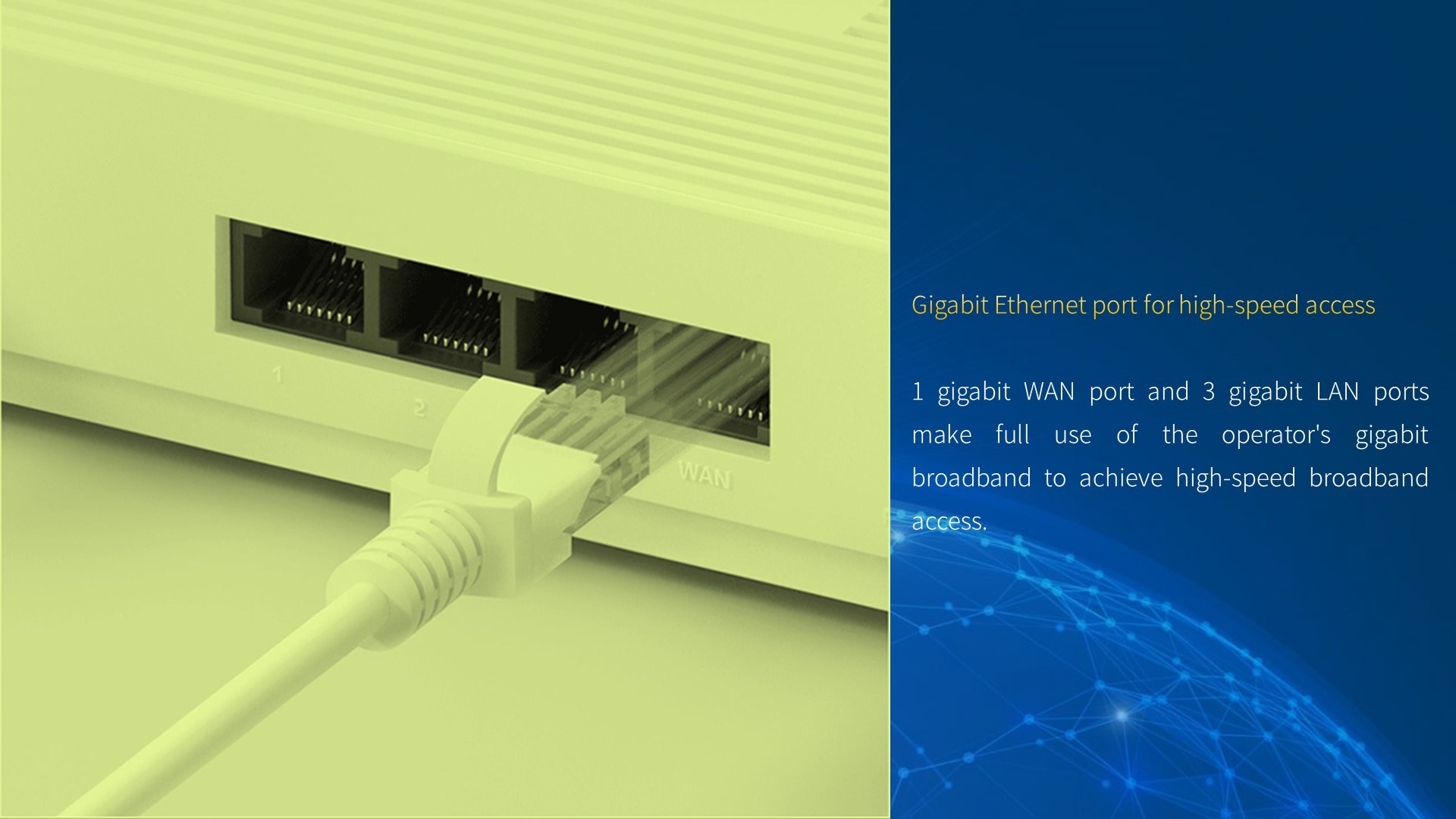

● 1*100/1000Mbps WAN port, 3*100/1000Mbps LAN port;

● Support WPA-PSK (TKIP), WPA2-PSK (AES), WPA-PSK (TKIP) + WPA2-PSK (AES), WPA3-SAE encryption;

● 256MB memory + 128MB Flash large storage design;

● Support one-key reset, one-key WPS connection to WIFI networking, support MESH networking;

● MT7981BA+MT7976CN+MT7531AE.

Hardware Description
Dimensions215mm（L）x 138mm（W）x 34mm（H）
Network side interfaceWAN:1*GE    LAN:3*GE    WLAN:2.4G/5G
User side interfaceEthernet interface1~4GE
WLAN interface2.4GHz 802.11ax（2X2）+ 5GHz 802.11ax（3X3）
Hardware MetricsCPUMT7981BA：A53（1300MHz，Durl Core）
FLASH capacity128MB
RAM capacity256MB
2.4G/5G WIFI2.4G built-in MT7981BA; 5G MT7976CN
Switch chipMT7531AE（1000Mbps×4）
Maximum power consumption15W
Recommendationsl  The product should be kept away from objects that affect the wireless signal transmission of the antenna, such as metal objects, mirrors and other highly reflective objects;l  Products should be kept away from interference sources (wireless routers, microwave ovens, wireless phones, Bluetooth products, and data centers that generate a lot of high-frequency noise);l  The product should be installed on the same floor of the use area as much as possible, and try to avoid using it on other floors;l  Do not stack items on the product and minimize obstructions between the product and the receiving productl  When the product is placed flat, the position should not be too high, the recommended height is between 1.2m and 1.5m;l  The product should be placed as flat as possible in the middle of the use area, and try to avoid placing it in the corner of the use area.
key switch indicator
Switch buttonbuttonRESET/WPS multiplexing button: long press for more than 8 seconds to restore factory settings，short press for 2 seconds to start WPSLink button: Press and hold for more than 5 seconds for mesh to take effect.
LED灯quantity1 green light, 1 red light
Status indicationSteady red light: normal power-on and no internet connectionBlinking red light: And-Link networking is in progressSteady green light: Internet connected, no data transferBlinking green light: Internet connected and data transfer available
ReliabilityThe MTBF (mean time between failures) should be at least 30,000 hours, and there should be no business interruption or performance degradation during long-term operation.
Protection abilityThe device power supply has the protection capability of 4KV (differential mode and common mode); the Ethernet interface has the protection capability of 1.5KV (common mode).
Software function
Connection TypePPPoE, dynamic IP, static IP; support automatic detection of access mode
Operating modeWireless Router Mode; Repeater Mode; WISP Mode
Mesh networkFast networking by keys; wireless configuration delivery
DHCPDHCP server; DHCP client list; DHCP reservation
VPNPPTP client； L2TP client
IP protocolIPv4 ; IPv6
Other functionsDual frequency integration; guest network, MAC address cloning, syslog; configuration backup and restore, firewall
Wireless standardIEEE 802.11n, IEEE 802.11g, IEEE   802.11b, IEEE 802.11a/n/ac
Data rate5GHz: 2402Mbps; 2.4GHz: 574Mbps
Frequency2.4GHz&5GHz
Basic skillsSSID Broadcast: Enable/Disable; Multiple Input Multiple Output
Wireless network securityWPA-PSK,WPA2-PSK, WPA/WPA2-PSK，WPA3-SAE/WPA2-PSK，WPA3-SAE；Wireless encryption disabled and enabled; WPS fast and secure connection
Other
TemperatureOperating temperature：0 ℃ ～45 ℃ ；Storage temperature：-40   ℃ ～70 ℃ 。
HumidityOperating humidity: 10% ~ 90% RH non-condensing; storage humidity: 5% ~ 90% RH non-condensing.
CertificateCCC、SRRC、CE
Package ContentsWireless Router*1; Power Adapter*1; Installation Guide*1; Ethernet Cable*1
